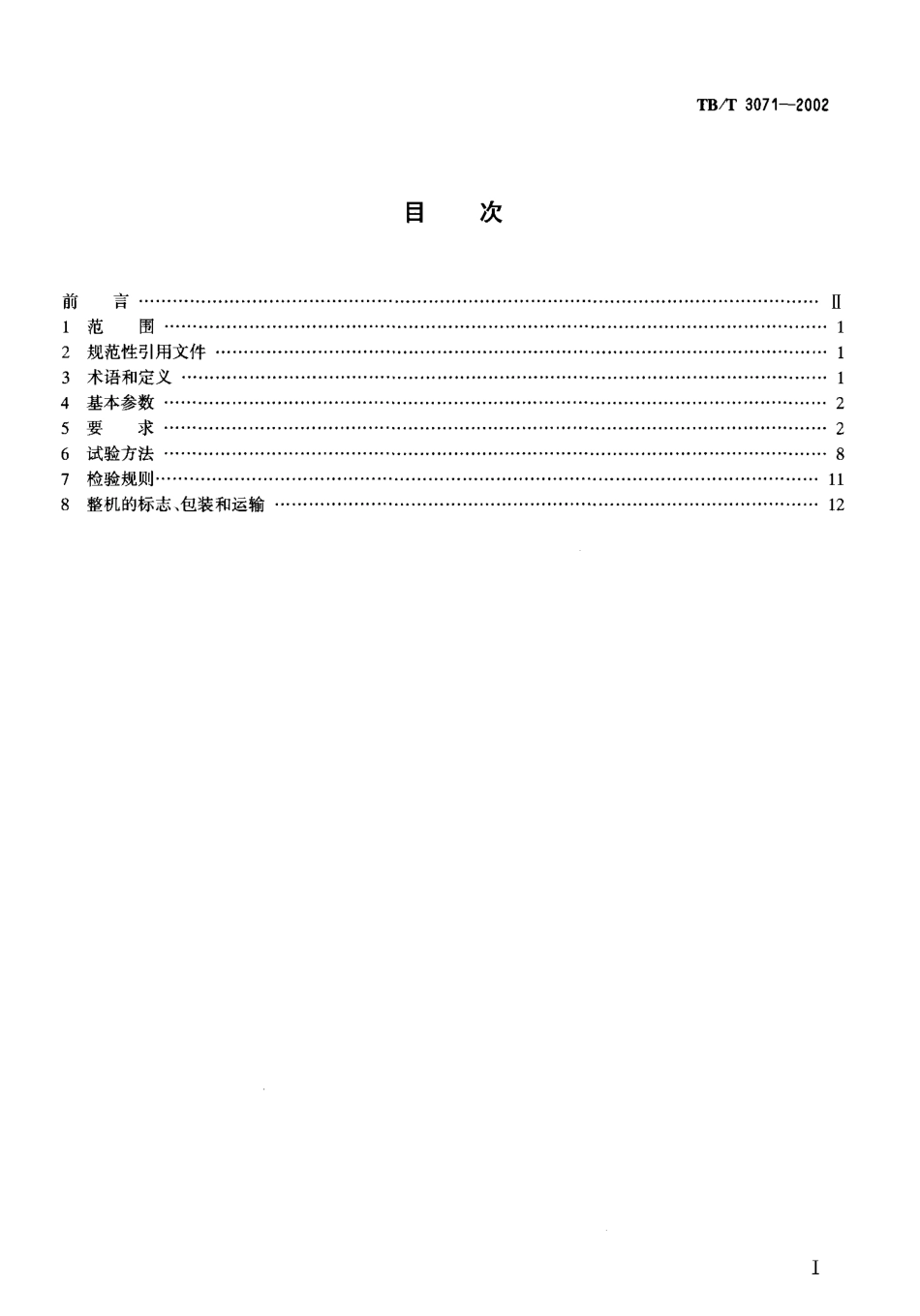

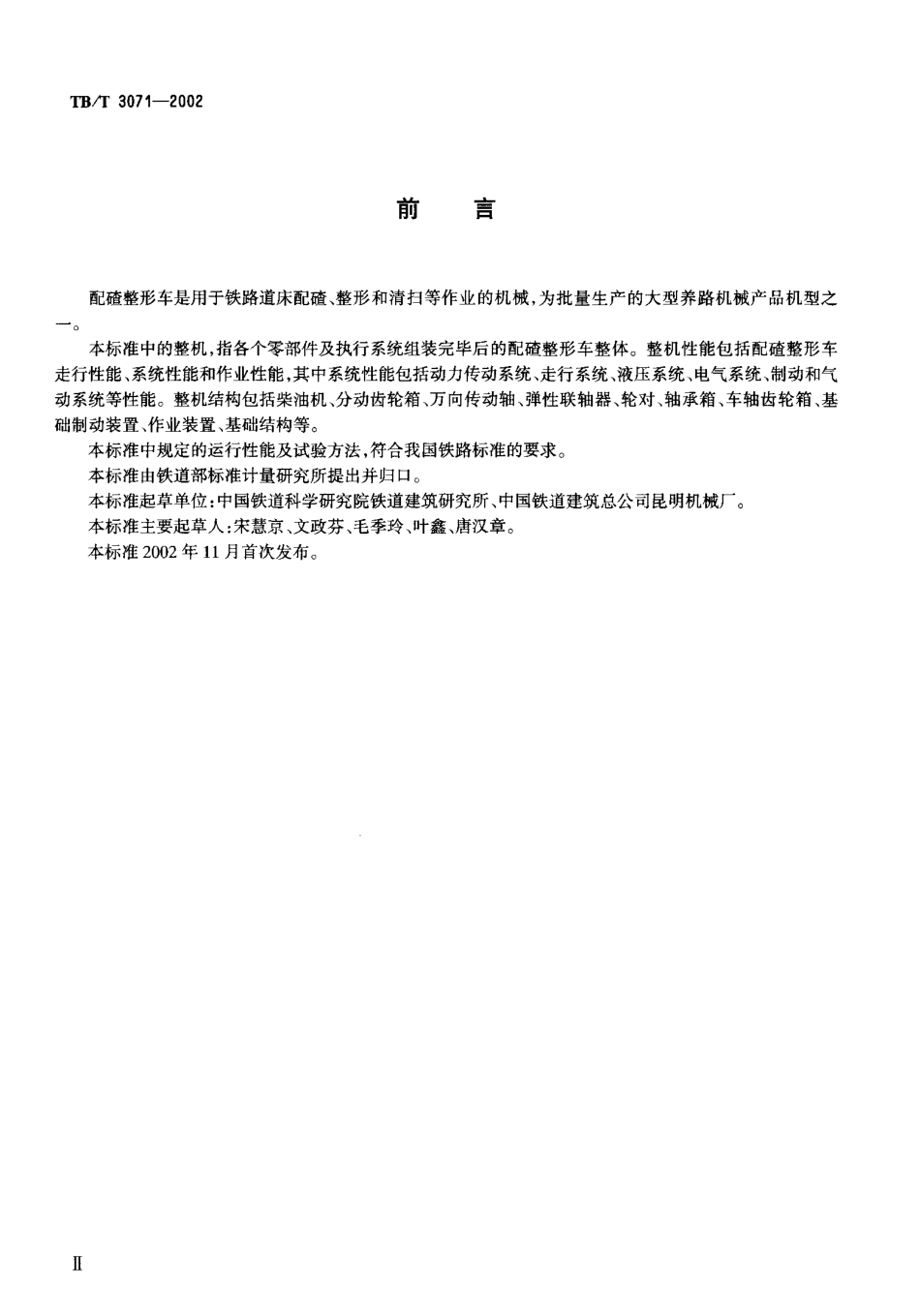

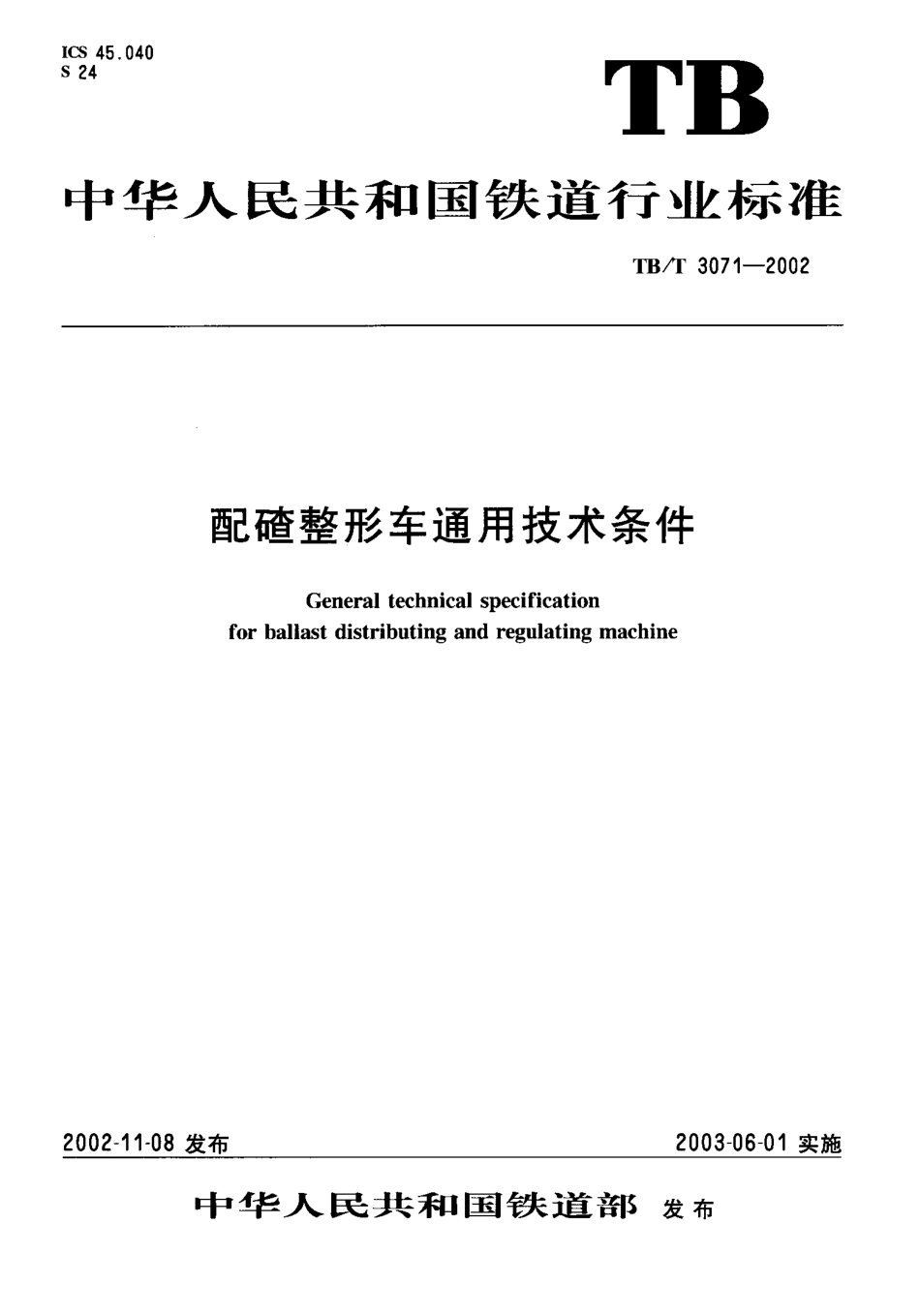

Ics 45 .040s 24T B中 华 人 民 共 和 国 铁 道 行 业 标 准TB / 1' 3 0 7 1-2 0 02配碴整形车通用技术条件 General technical specificationfor ballast distributing and regulating machine2002-11-08 发布2003-06-01 实施中 华 少L 民 共 和 国 铁 道 部发布TB /T 30 7 1-20 02目次前言 ············，·····································································································⋯⋯ n1范围 · 12 规范性引用文件 ·. 13术语和定义 ····························，···········································，···································⋯⋯ 14基本参数 ···············································································································⋯⋯ 25要求 ···············································································································⋯⋯ 26试验方法 ········································、·，····································，·································一 87检验规则···················，···························································································⋯⋯ 118 整机的标志、包装和运输 ··························································· ·············，················⋯⋯ 12T B月 ，3 07 1-2 00 2前言配碴整形车是用于铁路道床配碴、整形和清扫等作业的机械，为批量生产的大型养路机械产品机型之 本标准中的整机，指各个零部件及执行系统组装完毕后的配碴整形车整体。整机性能包括配碴整形车走行性能、系统性能和作业性能，其中系统性能包括动力传动系统、走行系统、液压系统、电气系统、制动和气动系统等性能。整机结构包括柴油机、分动齿轮箱、万向传动轴、弹性联轴器、轮对、轴承箱、车轴齿轮箱、基础制动装置、作业装置、基础结构等。 本标准中规定的运行性能及试验方法，符合我国铁路标准的要求。 本标准由铁道部标准计量研究所提出并归口。 本标准起草单位:中国铁道科学研究院铁道建筑研究所、中国铁道建筑总公司昆明机械厂。 本标准主要起草人:宋慧京、文政芬、毛季玲、叶鑫、唐汉章。 本标准2002 年 11 月首次发布。T B月3 07 1-2 00 2配碴整形车通用技术条件范围本标准规定了配碴整形车的基本参数、要求、试验方法、检验规则及整机的标志、包装和运输等。本标准适用于铁路自轮运行的配碴整形车(以下简称配碴车)的生产、调试和验收。2规范性引用文件 下列文件中的条款通过本标准的引用而成为本标准的条款。凡是注日期的引用文件，其随后所有的修改单(不包括勘误的内容)或修订版均不适用于本标准，然而，鼓励根据本标准达成协议的各方研.
