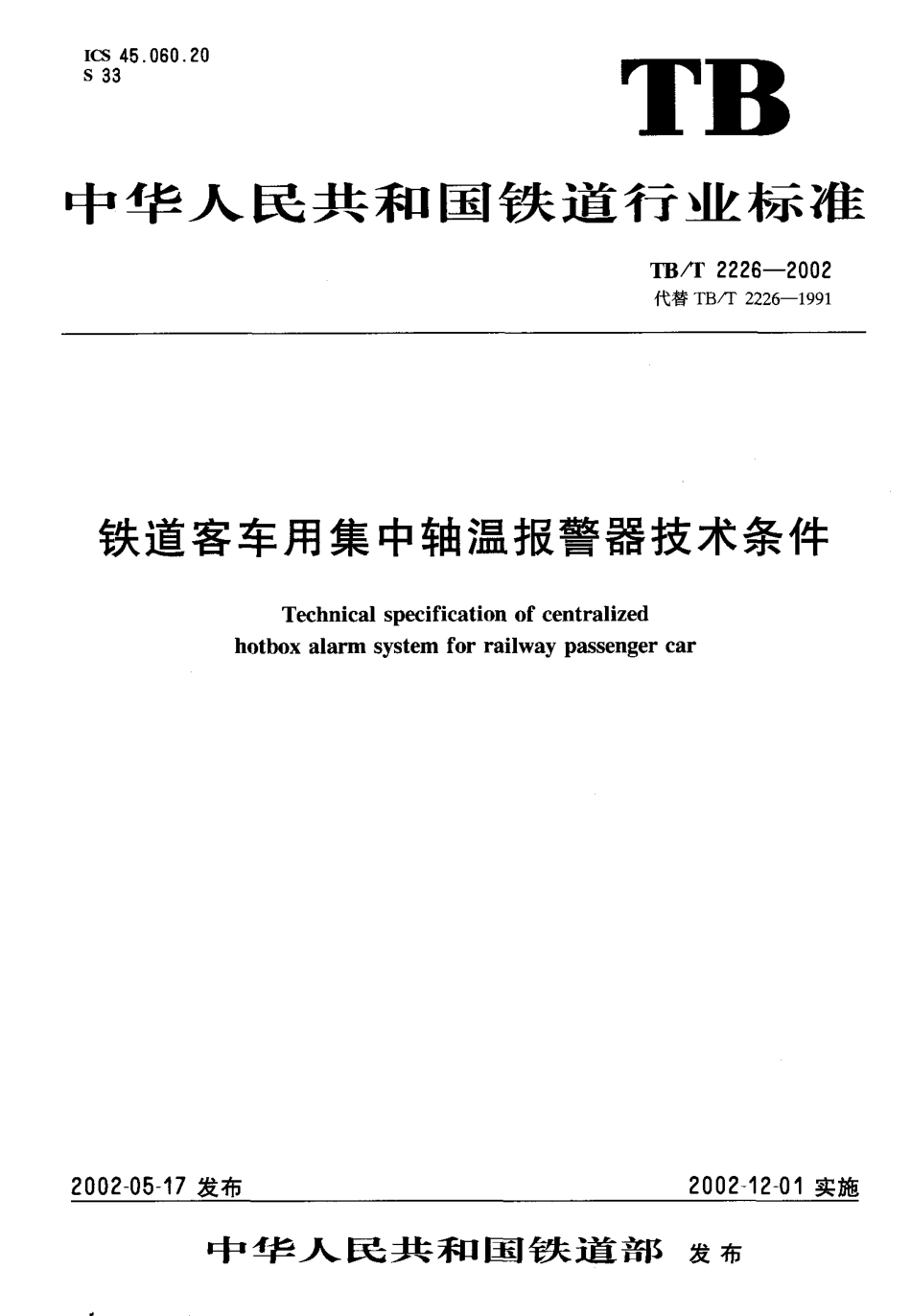

ICS 45 .060 .20S 33T B中 华 人 民 共 和 国 铁 道 行 业 标 准TB/T 2226-2002代替 TB/ 1' 2226- 1991铁道客车用集中轴温报警器技术条件 Technical specification of centralizedhotbox alarm system for railway passenger car2002-05-17 发布2002-12-01 实施中扫少味民 共 和 国 v 失M 部发布TB P r 2 22 6-2 00 2目次ll .二 .二 .二:. .二于. 二二:︸ .二 。二︸. 二二 二二:. 二二︸.’一围言 范前12规范性引用文件 ·· ····························································································⋯⋯ 13系统组成及使用条件 ·························································. ·····. ··⋯⋯ 14型号与标记 ······································································································⋯⋯ 15性能参数 · ················· ·····················································································⋯⋯ 26技术要求 ·········································································································⋯⋯ 27试验方法 ··、· ················· ······················· ················ ·········································⋯⋯ 68检验规则 ········································································.··············.·············⋯⋯ 89 标志、包装、运输和贮存 ······································································.········.·⋯⋯9附录A(规范性附录)铁道客车集中轴温报誓器通迅协议及说明 ····································⋯⋯ 11附录B(规范性附录)IC记录卡数据记录格式······· ········· ········ ·······························⋯⋯ 14附录 C(资料性附录)控制显示器及记录仪面膜尺寸参考图 ··········································⋯⋯ 16TB / T 22 26 -20 0 2月U吕 本标准替代TB/1' 2226- 199以TKZW-1T型客车轴温巡检报警器》。由于TKZW-1T 型客车轴温巡检报警器已停止生产，本标准根据集中轴温报替器的特点，增加了相应的性能参数、技术要求(特别是网络通讯要求)、试验方法等。 本标准的附录A、附录B 为规范性附录，附录C 为资料性附录。 本标准由四方车辆研究所提出并归口。 本标准起草单位:四方车辆研究所。 本标准起草人:李华、颜纯。 本标准于1991 年首次发布，本次为第一次修订。TB / r 22 26-2 002铁道客车用集中轴温报警器技术条件， 范围 本标准规定了铁道客车用分散装于转向架轴箱上的铁道客车集中轴温报警器的产品分类、性能参数 、技术要求、试验方法、检验规则等。 本标准适用于铁道客车集中轴温报警器(以下简称集中轴温报警器)的设计、生产、试验和检验。2规范性引用文件 下列.
